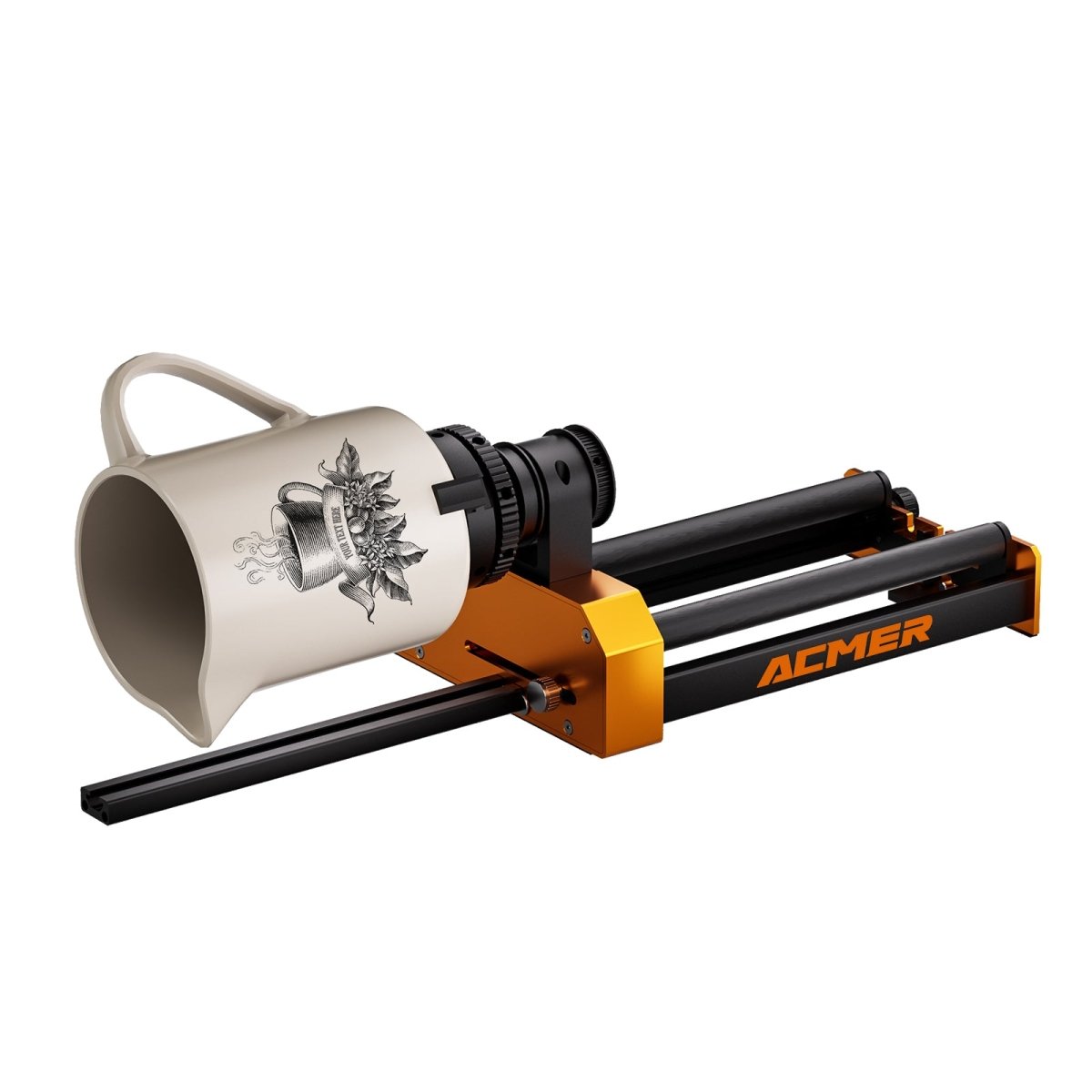

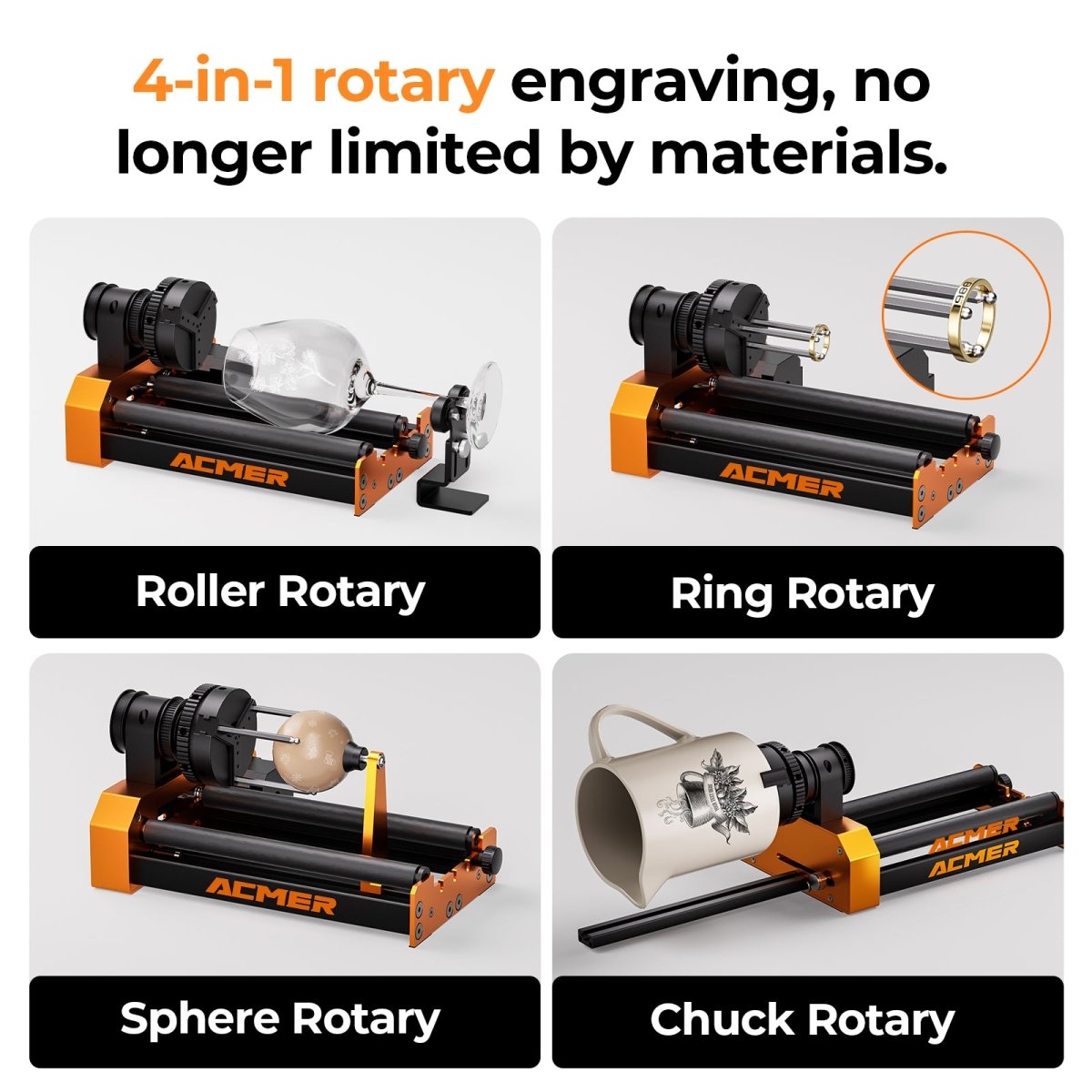

Chuck and roller 4IN1 rotary module for laser engraver
Rotary Roller
For long & irregular cylinders

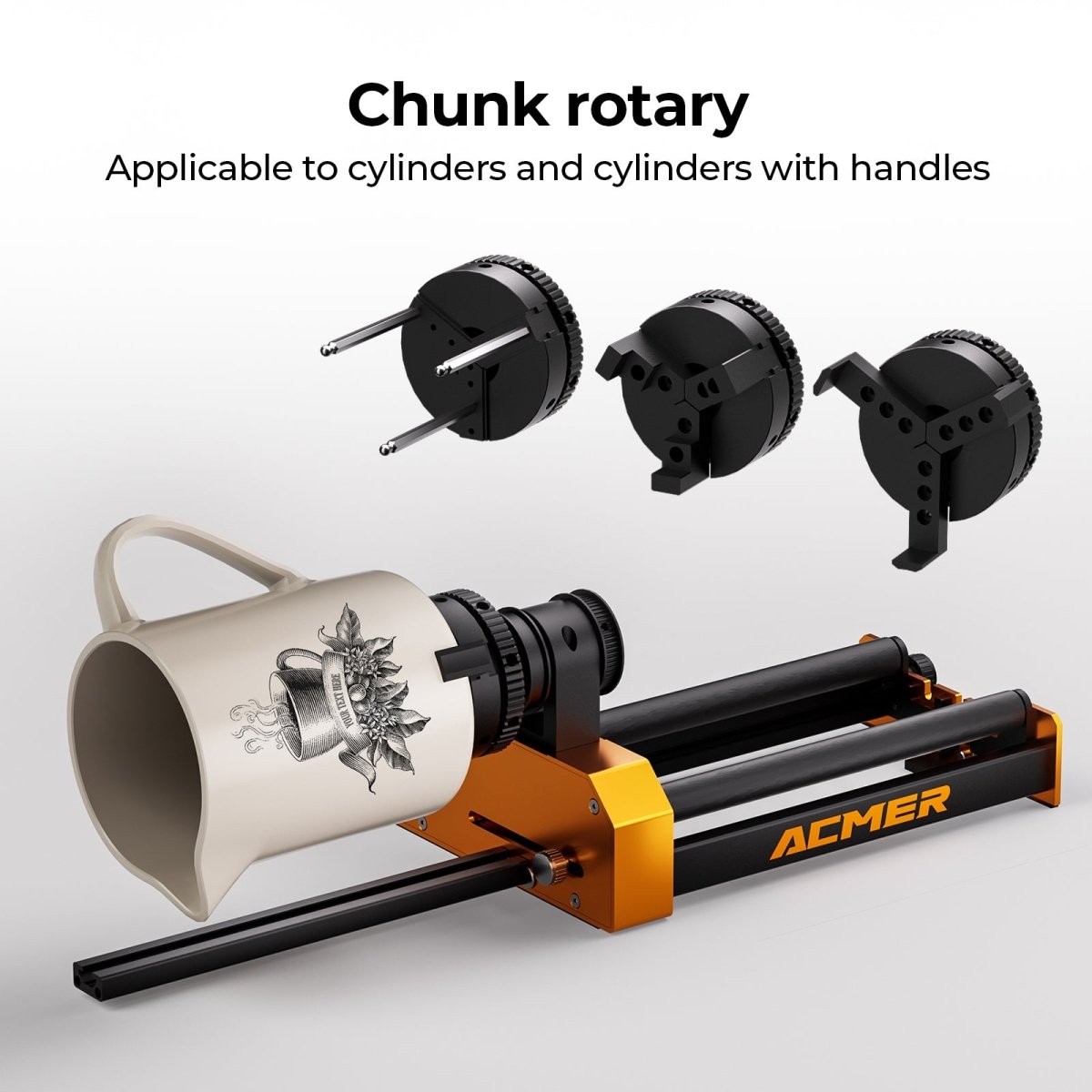

Chuck Rotary
Applicable to cylinders with handles
Sphere Rotary
For various spheres
Ring Rotary
Applicable for various sizes of ring styles
Irregular cylinder carving
Long size cylinder engraving
Separate stand Design
Suitable for supporting longer objects and also supports height adjustment.
Multi-gear adjustment, adaptable to different diameters
The diameter range of ACMER M4 rollers: stepped claws (1-100mm), right-angle claws (1-134mm),
spherical rods (9.5-95mm inner diameter), rings (16-75mm spheres) enable a wide range of object engraving.
ACMER M4 is compatible with all models of ACMER machines and most laser engravers on the market.
M4 is also compatible with laserGRBL and lightburn. You can use the software to draw or file to engrave wonderful patterns on the cylinder.
Specification
size
250*175*125mm (including chuck module)
weight
1.6kg
Roller maximum spacing
78mm
Roller recommended engraving
length ≤370mm (uniform density cylinder)
Chuck recommended clamping diameter range
Stepped claw (1-100mm)
right-angle claw (1-134mm)Spherical rod (inner diameter 9.5-95mm
ring(16-75mm sphere)
Chuck size
Ø64mm
Compatibility
Supports engraving on cylindrical objects such as glass bottles, stemmed glasses, thermos cups, and similar items.
Width adjustment
4 levels
Engraving diameter range
3mm≤D≤150mm
